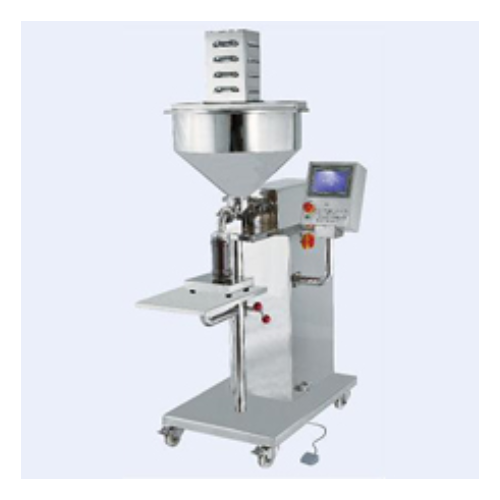

POWDER FILLING MACHINE



Model: C3-P

Category: Gift Boxes, Packing Materials & Machinery

Exhibitor: ACE PUMP CO., LTD.

Booth No: J1004



Characteristic



APPLICATIONS : For filling various powder and granulated products such as flour, grain powders, flavor additives, chemical powders... etc.

FEATURES :

◆Quantifying mode：weight and volume
◆Weight type filling range : 25g~5000g (including weight of container)
◆Weight type filling accuracy : depends on specific gravity, concentration and evenness of products
◆Volume type filling range : 25cc~5000cc/per filling
◆Filling amount can be set according to the requirements
◆Filling speed can be set according to the requirements,also depends on the viscosity, density and property of filling products
◆Volume type filling accuracy : depends on specific gravity, concentration and evenness of products)
◆Liquid might contain max. 6mm granule
◆Driven by servo motor and controlled by PLC for high accuracy
◆Touchscreen for easy operation
◆Can be set at manual filling or automatic sensor filling
◆Total 99 settings of weight and volume memorized
◆Two-stage weighing scale integrated with servo motor, low-speed filling follows hi-speed filling for superior accuracy
◆Different from the traditional auger type filler requiring certain high quantity of filling product in the hopper, C3 filler of weighing type can do accurate filling even if the quantity of filling product getting less or getting more in the hopper
◆With stirring device in the hopper to prevent bridging for powder filling
◆Hopper size: 50 Liter
◆Machine body made of SS304, parts contacting with filling products made of SS316
◆Air-Compressor : 2HP (prepared by user)
◆Dimendions：L73㎝ÍW130㎝ÍH185㎝
