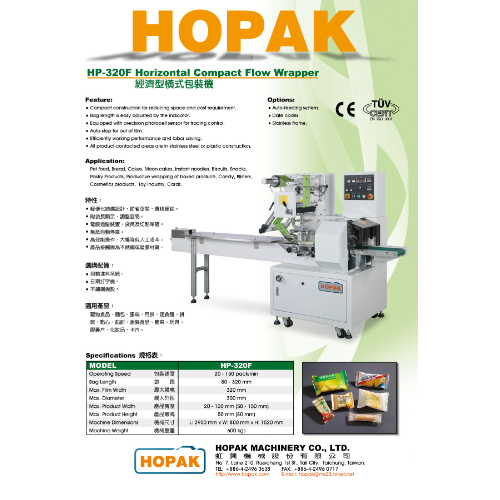

HP-320F Horizontal Compact Flow Wrapper



Model: HP-320F

Category: Gift Boxes, Packing Materials & Machinery

Exhibitor: HOPAK MACHINERY CO., LTD

Booth No: K928



Characteristic



Economical flow wrapper. Suitable for single and small product.

FEATURES
Compact construction for reducing space and cost requirement.
Bag length is easy adjusted by the indicator.
Equipped with precision photocell sensor for tracing control.
Auto-stop for out of film.
Efficiently working performance and labor saving.
All product-contacted areas are in stainless steel or plastic construction.
SPECIFICATION
MODEL HP-320F
Operating Speed 20 - 150 pack/min
Bag Length 80 - 300 mm
Max. Film Width 320 mm
Max. Diameter 300 mm
Product Width (max.) 20 - 120 mm (50 - 150 mm)
Product Height (max.) 50 mm (80 mm)
Machine Dimensions L: 2950 mm x W: 800 mm x H: 1520 mm
Machine Weight 600 kgs
APPLICABLE PACKAGING PRODUCTS
Pet food, bread, cakes, moon cakes, instant noodles, biscuits, snacks, pastry products, productive wrapping of boxed products, candy, blisters, cosmetics products, toy industry, cards.
OPTIONAL ACCESSORIES
Auto-feeding system.
Date coder.
Stainless steel machine frame.
