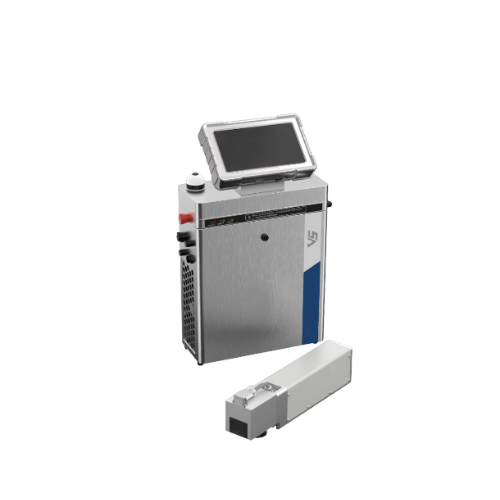

FIBER LASER CODING SYSTEM



Model: IF-Laser 30K

Category: Others

Exhibitor: IKD-INKJET TAIWAN

Booth No: K1322



Characteristic



The IF-Laser 30K, 30W fiber laser features high-speed 2D scanning with a marking speed of ≤12000mm/s, making it ideal for high-speed production lines. Equipped with red-light positioning and an air-cooled system, it ensures stable operation. Supporting various barcodes, QR codes, and multilingual marking, it is perfect for electronic components, metal parts, medical devices, plastic products, and packaging labels with fine engraving requirements.

Full Specifications
Power: 30W
Machine Material: Anodized Aluminum (Laser Head) & Stainless Steel (Control Unit)
Laser Type: Fiber laser source
Laser Wavelength: 1064nm
Scan Method: High-precision 2-dimensional scanning method
Marking Speed: ≤12000mm/s
Main Control: SUNINE V5 highly integrated motherboard with 10-inch controller
Operating System: Linux
Cooling Method: Air-cooled
Type of Marking: Both dot matrix & vector
Reflector Size: Standard: 8.5mm
Marking Field: Standard: 110mm × 110mm, maximum optional: 500mm × 500mm
Positioning Method: Red-light positioning
Lines of Characters: No limits within the marking field
Production Line Speed: 0-189m/min (varies according to materials and printing contents)
Supported Languages:
Chinese Simplified, Chinese Traditional, English, German, Spanish, French, Italian, Japanese, Korean, Portuguese, Hindi, Russian, Turkish, Arabic, Persian, etc.
Supported File Formats: BMP, DXF, PNG, JPEG, PLT, JPG
Supported Code Types:
Code128A, Code128B, Code128C, Code39, Code93, EAN-13, PDF417, 01 Code, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode
Power Supply: 220V / 50-60Hz (110V optional)
Maximum Power Consumption: ≤600W
Net Weight (N.W.): 29kg
Laser Head Size: 453mm × 84mm × 111mm
Control Unit Size: 383mm × 160mm × 492mm
Interfaces: RS-232C / USB2.0 / Ethernet / I/O
Working Conditions:
Temperature: 0-45°C
Humidity: 30%-85% RH (No condensing)
